Name: Streets 36 feet and Over

Display Field: STREETNAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

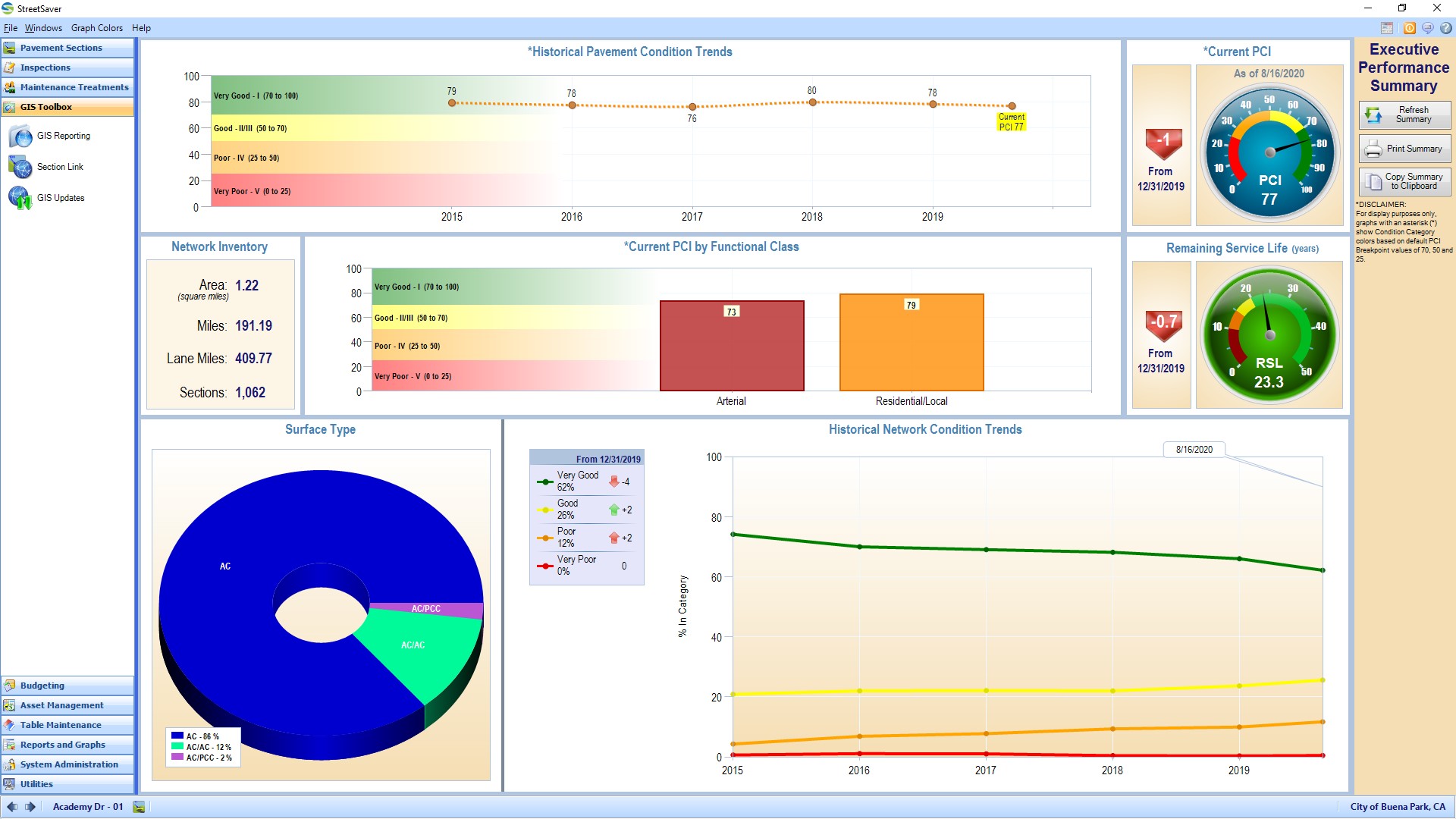

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>The City of Buena Park uses a Pavement Management System to monitor the general condition of the pavement on all streets in the City. This system tracks the pavement condition using a measurement called the "Pavement Condition Index" or PCI. These PCI values can range from 0 to 100, with a higher number indicating a better pavement condition. The Pavement Management System helps staff to determine what types of pavement treatment each street might require (ie: slurry seal, thin overlay, thick overlay, reconstruction, etc.), and what year these treatments should be applied. By inputting cost data for similar projects, the Pavement Management System also helps staff with rough cost estimates to do this work.</SPAN></P><P><SPAN>PCI values are determined by a nationally adopted standard for pavement "distresses." Every two years, the City has approximately 1/3 of all City streets inspected for pavement distresses. These distresses are input into the pavement management system, which then calculates the PCI value for each segment. For segments that are not inspected, the Pavement Management System estimates the current condition of the street based on the last inspection data and the length of time since the last inspection. </SPAN></P><P><SPAN>The Orange County Transportation Authority (OCTA) requires every city in Orange County to maintain this type of database in order to be eligible for Measure M2 funding. All cities submit their Pavement Management data to OCTA every two years for review and to maintain eligibility.</SPAN></P></DIV></DIV></DIV>

Service Item Id: cfe581fd0b404bf39e5b9931c8f6dde4

Copyright Text: Buena Park, Norm Wray, Nichols Consulting Engineers (NCE), StreetSaver

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6019008.934628502
YMin: 2242919.2585670054
XMax: 6037712.529111013
YMax: 2273859.891895592
Spatial Reference: 102646  (2230)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [0, 255, 0, 255]
Width: 2
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Section_Ke ( type: esriFieldTypeString, alias: Section_Ke, length: 10 )
• Show ( type: esriFieldTypeDouble, alias: Show )
• Color ( type: esriFieldTypeDouble, alias: Color )
• StreetID ( type: esriFieldTypeString, alias: Street ID, length: 13 )
• SectionID ( type: esriFieldTypeString, alias: Section ID, length: 10 )
• STREETNAME ( type: esriFieldTypeString, alias: Street Name, length: 150 )
• ShapeKey ( type: esriFieldTypeString, alias: ShapeKey, length: 50 )
• BegLocatio ( type: esriFieldTypeString, alias: Begin Location, length: 100 )
• EndLocatio ( type: esriFieldTypeString, alias: End Location, length: 100 )
• RoadName ( type: esriFieldTypeString, alias: Road Name, length: 30 )
• RoadNumber ( type: esriFieldTypeString, alias: Road Number, length: 20 )
• BegPoint ( type: esriFieldTypeDouble, alias: Begining Point )
• EndPoint ( type: esriFieldTypeDouble, alias: End Point )
• NeedsUntre ( type: esriFieldTypeDouble, alias: NeedsUntre )
• Lanes ( type: esriFieldTypeDouble, alias: Lanes , Coded Values: [1: 1] , [2: 2] , [3: 3] , ...1 more... )
• FCDetail ( type: esriFieldTypeString, alias: FCDetail, length: 70 , Coded Values: [A Arterial: A Arterial] , [R Residential/Local: R Residential/Local] )
• SectionLen ( type: esriFieldTypeDouble, alias: Section Length )
• SectionWid ( type: esriFieldTypeDouble, alias: Section Width )
• SectionAre ( type: esriFieldTypeDouble, alias: Section Area )
• SlabLength ( type: esriFieldTypeDouble, alias: Slab Length )
• SlabWidth ( type: esriFieldTypeDouble, alias: Slab Width )
• NumSlabs ( type: esriFieldTypeDouble, alias: Number of Slabs )
• CulDeSac ( type: esriFieldTypeDouble, alias: CulDeSac , Coded Values: [0: False] , [1: True] )
• YearOfCons ( type: esriFieldTypeDate, alias: Year Of Construction, length: 8 )
• SurfaceTyp ( type: esriFieldTypeString, alias: Surface Type, length: 70 , Coded Values: [A AC: A AC] , [C AC/PCC: C AC/PCC] , [O AC/AC: O AC/AC] )
• GenCode ( type: esriFieldTypeString, alias: GenCode, length: 70 )
• TrafficInd ( type: esriFieldTypeDouble, alias: Traffic Index )
• ADTQuantit ( type: esriFieldTypeDouble, alias: ADT )
• ADTDate ( type: esriFieldTypeDate, alias: ADT Date, length: 8 )
• ShoulderWi ( type: esriFieldTypeDouble, alias: Shoulder Width )
• AreaID ( type: esriFieldTypeString, alias: Area ID, length: 70 )
• FundSource ( type: esriFieldTypeString, alias: Fund Source, length: 70 )
• Inspection ( type: esriFieldTypeString, alias: Inspection, length: 5 )
• PCIDate ( type: esriFieldTypeDate, alias: PCI Date, length: 8 )
• PCI ( type: esriFieldTypeDouble, alias: PCI )
• PCIHI ( type: esriFieldTypeDouble, alias: PCI - Hi )
• PCILow ( type: esriFieldTypeDouble, alias: PCI - Low )
• PCTLoad ( type: esriFieldTypeDouble, alias: PCT Load )
• PCTEnviron ( type: esriFieldTypeDouble, alias: PCT Environ )
• PCTOther ( type: esriFieldTypeDouble, alias: PCT Other )
• PCIFromVis ( type: esriFieldTypeDouble, alias: PCIFromVis )
• PCIHasSpec ( type: esriFieldTypeDouble, alias: PCIHasSpec )
• KntInsp ( type: esriFieldTypeDouble, alias: KntInsp )
• KntUnit ( type: esriFieldTypeDouble, alias: KntUnit )
• NHS ( type: esriFieldTypeDouble, alias: NHS )
• PCIExFlg ( type: esriFieldTypeDouble, alias: PCIExFlg )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 255 )
• YearToInsp ( type: esriFieldTypeString, alias: YearToInsp, length: 4 )
• Shift ( type: esriFieldTypeDouble, alias: Shift )
• Chi ( type: esriFieldTypeDouble, alias: Chi )
• User1 ( type: esriFieldTypeString, alias: User1, length: 50 )
• User2 ( type: esriFieldTypeString, alias: User2, length: 50 )
• User3 ( type: esriFieldTypeString, alias: User3, length: 50 )
• User4 ( type: esriFieldTypeString, alias: User4, length: 50 )
• User5 ( type: esriFieldTypeString, alias: User5, length: 50 )
• User6 ( type: esriFieldTypeString, alias: User6, length: 50 )
• User7 ( type: esriFieldTypeString, alias: User7, length: 50 )
• User8 ( type: esriFieldTypeString, alias: User8, length: 50 )
• User9 ( type: esriFieldTypeString, alias: User9, length: 50 )
• User10 ( type: esriFieldTypeString, alias: User10, length: 50 )
• GISSection ( type: esriFieldTypeString, alias: GISSection, length: 10 )
• StartStree ( type: esriFieldTypeDouble, alias: StartStree )
• StartLengt ( type: esriFieldTypeDouble, alias: StartLengt )
• StartY ( type: esriFieldTypeDouble, alias: StartY )
• StartX ( type: esriFieldTypeDouble, alias: StartX )
• EndStreetI ( type: esriFieldTypeDouble, alias: EndStreetI )
• EndLength ( type: esriFieldTypeDouble, alias: EndLength )
• EndY ( type: esriFieldTypeDouble, alias: EndY )
• EndX ( type: esriFieldTypeDouble, alias: EndX )
• Offset ( type: esriFieldTypeDouble, alias: Offset )
• LinkRoad ( type: esriFieldTypeString, alias: LinkRoad, length: 60 )
• ProjSecPCI ( type: esriFieldTypeDouble, alias: ProjSecPCI )
• StIDSecID ( type: esriFieldTypeString, alias: StIDSecID, length: 25 )
• SurfaceTy1 ( type: esriFieldTypeString, alias: SurfaceTy1, length: 10 )
• FCDetail_K ( type: esriFieldTypeString, alias: FCDetail_K, length: 150 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• CalcWidth ( type: esriFieldTypeDouble, alias: Calculated Width )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
