View In:   ArcGIS Online Map Viewer

Name: Utility Grid

Display Field: Name

Type: Feature Layer

Geometry Type: esriGeometryPolygon

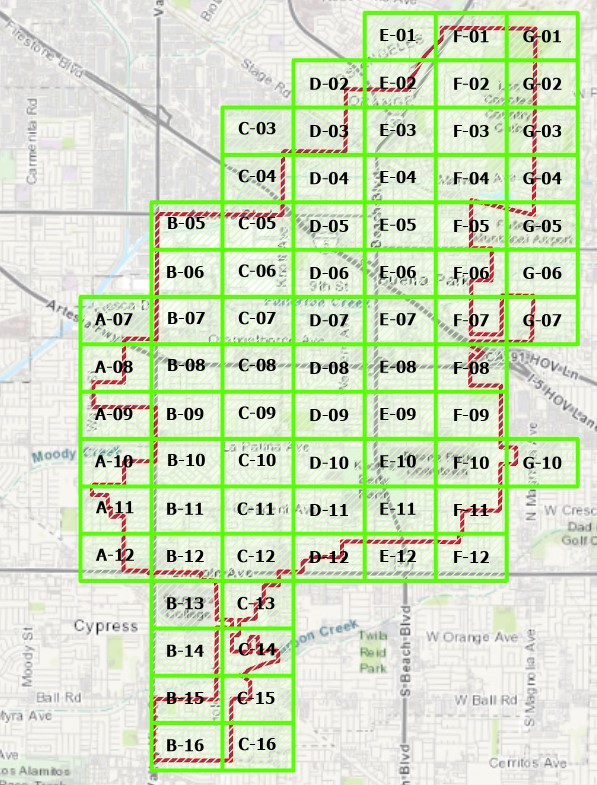

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This feature class shows how the City of Buena Park divides the city into a grid system for utility purposes. Various utilities (ie: storm draings, sewer manholes, etc.) are referred to based on which grid they are in. This helps the Buena Park Public Works Department quickly reference the location of any particular item.</SPAN></P><P><SPAN>In addition, this feature class is linked to PDF maps for each utility type. The individual maps show an overview of utility features in that grid, and allow quick reference for users.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 74702e2e5f874fa997ae351412fd5c98

Copyright Text: Buena Park, Bud Larkin, Applied Geodetics, Norm Wray

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 6018499.999622762
YMin: 2242499.9995630085
XMax: 6039499.999617428
YMax: 2274499.999539256
Spatial Reference: 102646  (2230)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSBackwardDiagonal
Color: [211, 255, 190, 255]
Outline:
Style: esriSLSSolid
Color: [85, 255, 0, 255]
Width: 2
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 12
Font Family: Tahoma
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• ID ( type: esriFieldTypeString, alias: ID, editable: true, nullable: true, length: 254, defaultValue: null, modelName: ID )
• Name ( type: esriFieldTypeString, alias: Name, editable: true, nullable: true, length: 254, defaultValue: null, modelName: Name )
• SewerLink ( type: esriFieldTypeString, alias: DataLink, editable: true, nullable: true, length: 100, defaultValue: null, modelName: SewerLink )
• created_user ( type: esriFieldTypeString, alias: created_user, editable: false, nullable: true, length: 255, defaultValue: null, modelName: created_user )
• created_date ( type: esriFieldTypeDate, alias: created_date, editable: false, nullable: true, length: 8, defaultValue: null, modelName: created_date )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, editable: false, nullable: true, length: 255, defaultValue: null, modelName: last_edited_user )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, editable: false, nullable: true, length: 8, defaultValue: null, modelName: last_edited_date )
• WaterLink ( type: esriFieldTypeString, alias: WaterLink, editable: true, nullable: true, length: 100, defaultValue: null, modelName: WaterLink )
• StormLink ( type: esriFieldTypeString, alias: StormLink, editable: true, nullable: true, length: 100, defaultValue: null, modelName: StormLink )
• Shape__Area ( type: esriFieldTypeDouble, alias: Shape.STArea(), editable: false, nullable: false, defaultValue: null, modelName: Shape.STArea() )
• Shape__Length ( type: esriFieldTypeDouble, alias: Shape.STLength(), editable: false, nullable: false, defaultValue: null, modelName: Shape.STLength() )

Templates:

• Name: Utility Grid
  Description:
  Prototype:
  StormLink: null
  WaterLink: null
  ID: null
  Name: null
  SewerLink: null

  Drawing Tool: esriFeatureEditToolPolygon

Capabilities: Query,Create,Update,Delete,Uploads,Editing

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: false

Edit Fields Info:

• Creation Date Field: created_date
• Creator Field: created_user
• Edit Date Field: last_edited_date
• Editor Field: last_edited_user

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Apply Edits   Add Features   Update Features   Delete Features   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
