Name: Utility Grid

Display Field: Name

Type: Feature Layer

Geometry Type: esriGeometryPolygon

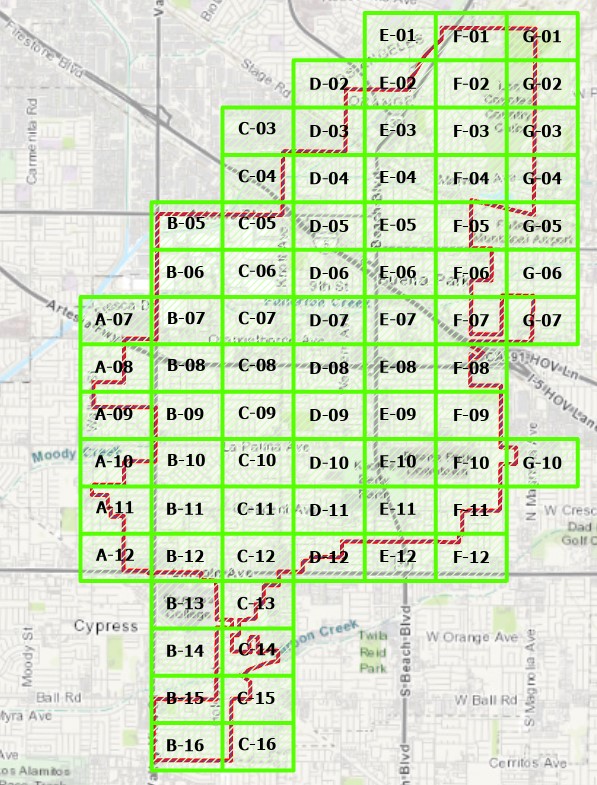

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This feature class shows how the City of Buena Park divides the city into a grid system for utility purposes. Various utilities (ie: storm draings, sewer manholes, etc.) are referred to based on which grid they are in. This helps the Buena Park Public Works Department quickly reference the location of any particular item.</SPAN></P><P><SPAN>In addition, this feature class is linked to PDF maps for each utility type. The individual maps show an overview of utility features in that grid, and allow quick reference for users.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 6c3d6aef8a314710bdf78e2aba0d5897

Copyright Text: Buena Park, Bud Larkin, Applied Geodetics, Norm Wray

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6018499.999622762
YMin: 2242499.9995630085
XMax: 6039499.999617428
YMax: 2274499.999539256
Spatial Reference: 102646  (2230)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSBackwardDiagonal
Color: [211, 255, 190, 255]
Outline:
Style: esriSLSSolid
Color: [85, 255, 0, 255]
Width: 2
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 12
Font Family: Tahoma
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• ID ( type: esriFieldTypeString, alias: ID, length: 254 )
• Name ( type: esriFieldTypeString, alias: Name, length: 254 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• SewerLink ( type: esriFieldTypeString, alias: DataLink, length: 100 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• WaterLink ( type: esriFieldTypeString, alias: WaterLink, length: 100 )
• StormLink ( type: esriFieldTypeString, alias: StormLink, length: 100 )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
